3M 1421XR iD BALL MARKER
3M 1421XR iD BALL MARKER

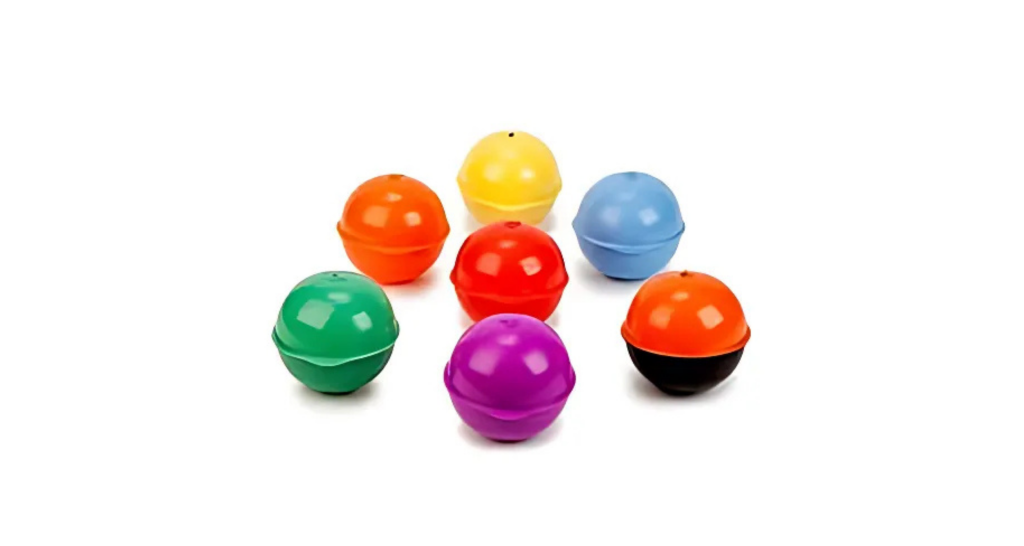

The 3M 1421-XR/iD Ball Marker is a next-generation electronic locating marker designed specifically for telephone utility applications. It enhances the ability to locate and identify buried facilities with pinpoint accuracy—even in harsh or complex environments.
Description for Railway Notice Inviting Tender (NIT)
Supply of Electronic Marker Locator with inbuilt GPS :
Supply of Marker locator with capability to detect electronic markers (both Passive and RFID), with marker depth estimation and support for detection of multiple marker frequencies, including simultaneous dual frequency operation. The system should be capable of reading, writing, and editing user data (min. 256 bits) inside compatible RFID electronic ball markers. Receiver should feature built-in GPS interface and software upgradability via standard communication port
Model No.- 1420X iD
Applications
Buried splices
Buried service drops
Conduit stubs
Cable paths
Load coils
Fiber optic facilities
Installations under pavement or snow
Benefits
Unique Identification: Embedded with a 10-digit pre-programmed ID number for positive underground identification.
Programmable Data Storage: Store and retrieve application-specific data such as hazard levels, facility type, and placement date using 3M Dynatel™ 1420/2550X-iD locators.
Color-Coded: Orange color code aligns with APWA standard for telephone utilities.
Durable Construction: Watertight, self-leveling polyethylene shell for long-lasting performance in all soil conditions.
Environmentally Friendly: Contains a biodegradable propylene glycol and water solution that is non-toxic and safe for humans and wildlife.
Technical Specifications
| Feature | Details |
|---|---|
|
Model |
1421-XR/iD |
|
Application |
Telephone |
|
Color |
Orange |
|
Read Range |
Up to 5 ft (1.5 m)
|
|
Write Range |
Up to 1 ft (0.3 m) |
|
Memory Size |
256 bits |
|
Compressed Text Capacity |
6 lines (8-character subject + 13-character description per line) |
|
Marker Weight |
0.77 lbs (0.35 kg) |
|
Shell Material |
High-density polyethylene |
|
Contents |
Propylene glycol and water mixture |
|
Operating Temp |
-4°F to 122°F (-20°C to 50°C) |
|
Storage Temp |
-4°F to 158°F (-20°C to 70°C) |
