3M™ DYNATEL™ 2550X / 2550X iD INTEGRATED
LOCATOR SERIES
3M™ DYNATEL™ 2550X / 2550X iD INTEGRATED LOCATOR SERIES

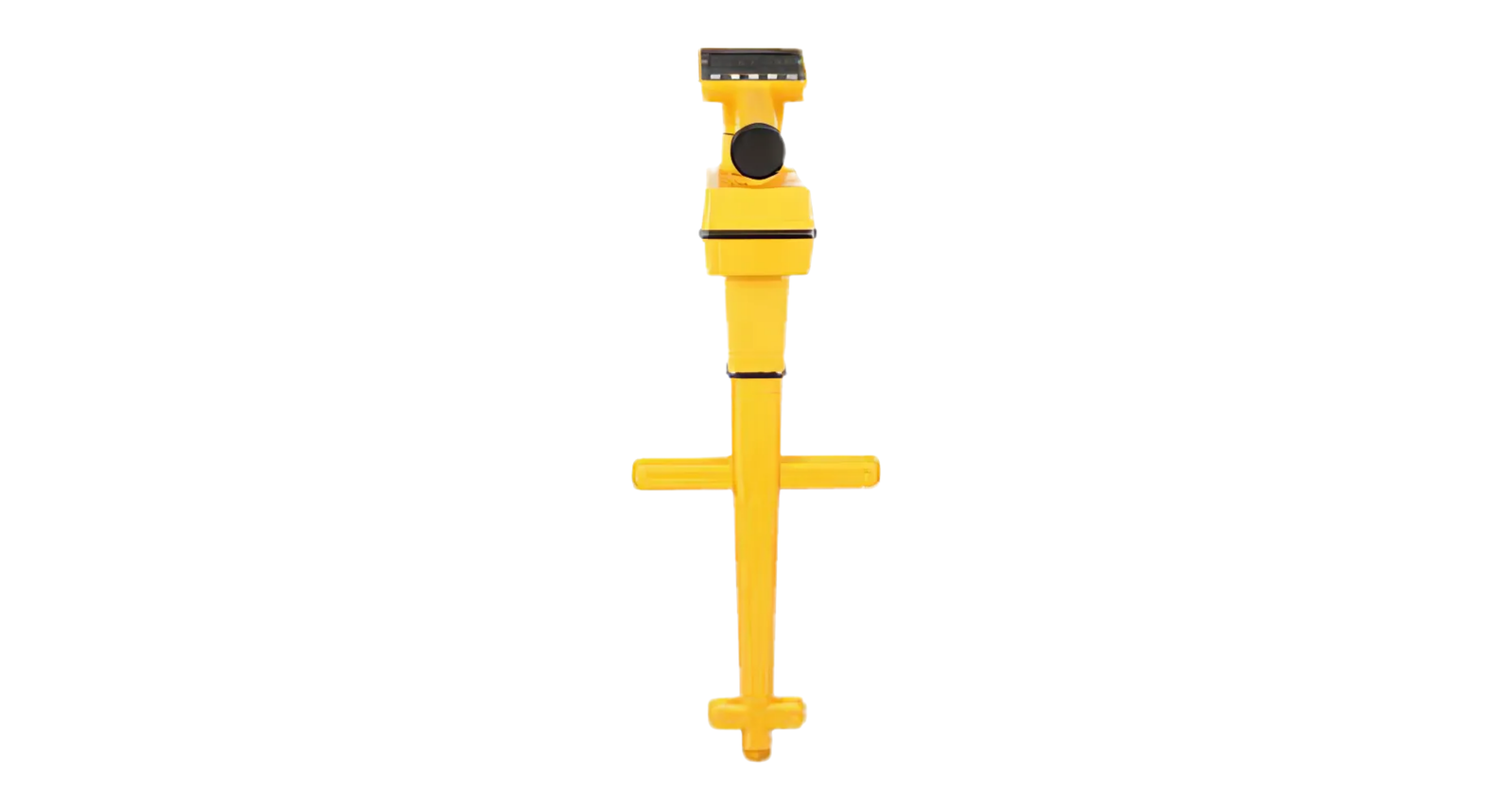

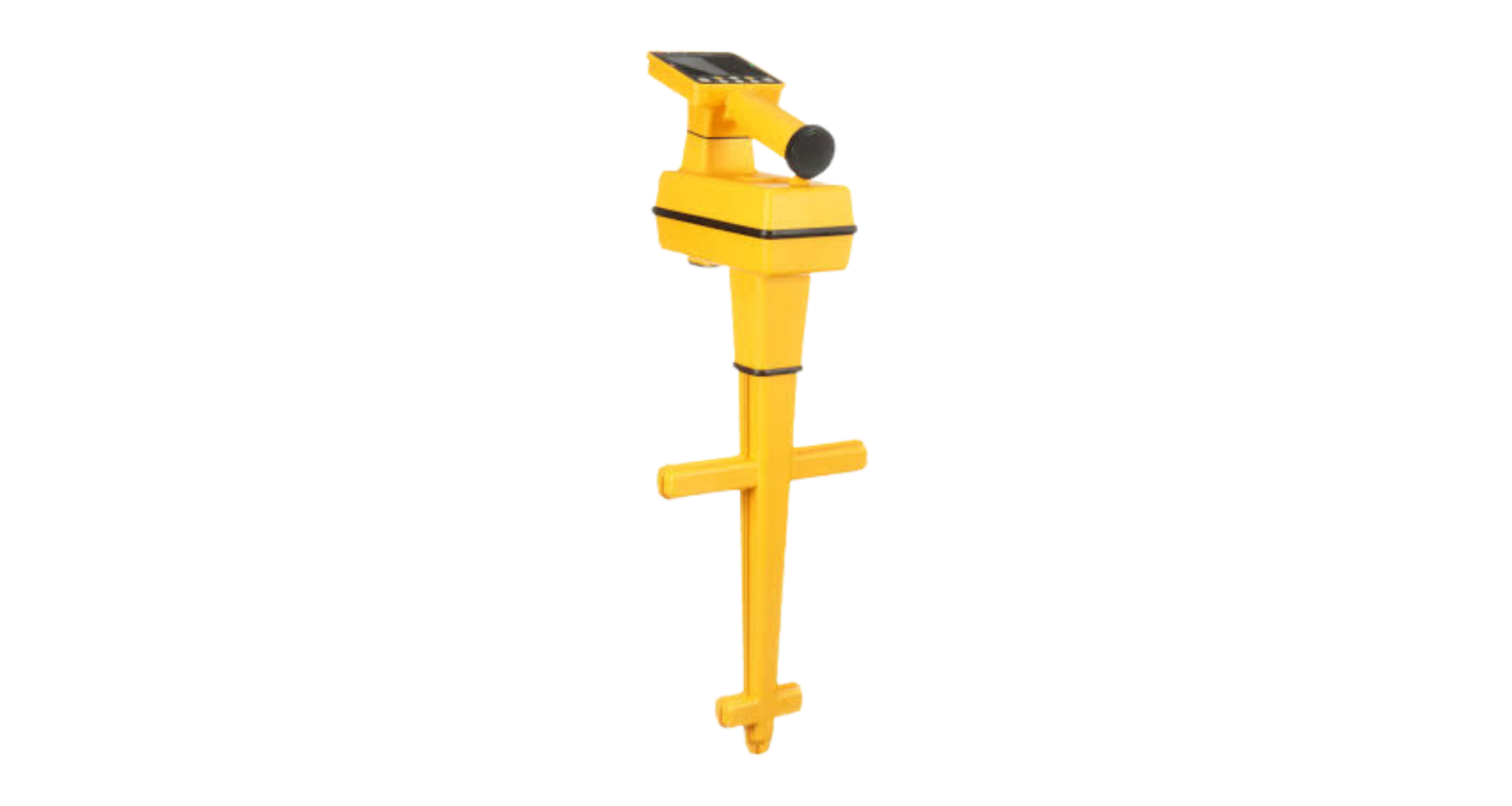

The 3M™ Dynatel™ Locator 2550X and 2550XE Series are rugged, lightweight solutions for underground cable and pipe locating. Featuring an intuitive interface, high-resolution graphical display, and integrated GPS and Bluetooth® technology, these units are optimized for daily field use by utility professionals. iD models also include full read/write support for 3M™ EMS iD Markers.
Description for Railway Notice Inviting Tender (NIT)
Supply of Integrated Electronic Cable/Pipe Route Tracer with Inbuilt Electronic Marker Locator:
Supply of 3M Dynatel Integrated locator with capability to detect cable/pipe routes (up to 9 meters depth) and electronic markers, (including ball markers) with marker depth estimation power 12W transmitter supporting multiple active frequencies, passive power detection, current and resistance measurement, and Super Induction mode. The system should be capable of reading, writing, and editing user-specific data inside compatible RFID electronic ball markers. Receiver should feature built interface, software upgradability via web download, and support signal current measurement in cable.
Model No.- 3M 2550X iD
Key Features
Precise location and depth detection of underground assets

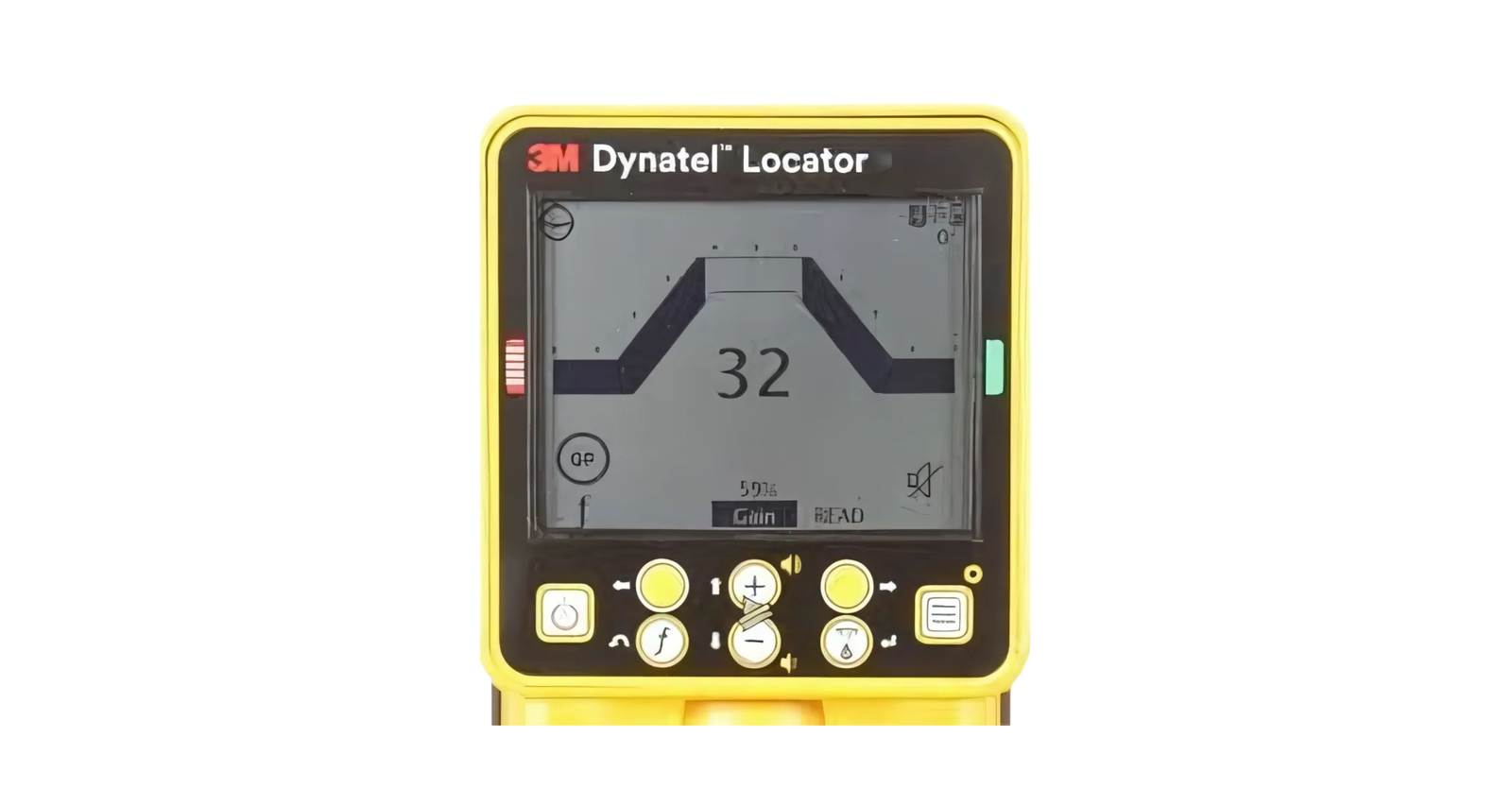

High-contrast 4.4” LCD graphical display
Bluetooth® 5.0 and USB Type-C® connectivity
Ergonomic, lightweight construction (4.8 lbs)
Multiple locating modes and active/passive frequency support
EMS iD Marker read/write (iD models)
Sheath fault detection capability
Dual marker detection mode for locating two marker types simultaneously
Benefits
Integrated GPS with 3m CEP50 accuracy
Accurate asset identification via EMS and iD marker capabilities
Field-ready build with minimal training required
Fast, reliable mapping and integration into GIS systems
Helps utilities reduce asset damage and maintenance costs
Portable and long-lasting — ideal for long field shifts
Simplifies reporting with integrated GPS and USB export
EMS and iD Marker Capabilities (iD Models Only)
Read Ranges: Near-surface: 3 ft, Ball marker: 5 ft, Mid-range: 6 ft, Full-range: 8 ft
Write Range: Up to 24 in (61 cm) for full-range iD markers
Depth Accuracy: ±10% ±5 cm
Supported Marker Types: Telecom, Power, Gas, Water, Wastewater, Communication, Reclaimed Water
Applications
Utility locating for telecom, electric, water, and gas pipelines
EMS marker reading and programming (iD models only)
GPS-enabled asset documentation
Fault location (sheath breaks)
Depth measurement of cables, pipes, or sonde
Power and Battery
| Item | Details |
|---|---|
|
Receiver Power |
Rechargeable Li-Ion + 8 AA backup |
|
Receiver Life |
8 hours (typical) |
|
Transmitter Batteries |
6 × C-cell or 3M 2200RB battery |
|
Output Power |
Normal: 0.5W, High: 3W, Max: 12W |
|
Output Protection |
240 Vrms |
|
Charging |
USB Type-C® port, 3A, 15W |
Locate and Operating Modes
| Type | Capacity |
|---|---|
|
Active |
577 Hz, 1 kHz, 8 kHz, 33 kHz, 82 kHz, 200 kHz (XE: 133 kHz) |
|
Passive |
15–30 kHz (LF), 31.5 kHz (CATV) |
|
Power |
50 Hz, 60 Hz + harmonics, 100/120 Hz rectified |
|
Auxiliary |
512 Hz, 560 Hz, 640 Hz |
|
Sonde |
512 Hz, 640 Hz, 8 kHz, 33 kHz |
|
User-defined |
4 frequencies from 50–999 Hz |
Locate and Operating Modes
| Mode Type | Description |
|---|---|
|
Trace View |
Compare peak and null while locating |
|
Directional Peak |
Directional guidance toward target asset |
|
Directional Null |
Confirms centerline with signal fade |
|
Special Peak |
Boosts receiver sensitivity |
|
Dual Peak |
Isolates signals in complex environments |
Data Storage
| Data Type | Frequencies Supported |
|---|---|
|
EMS-iD Read Records |
512 |
|
EMS-iD Write Records |
128 |
|
Locate Records |
512
|
|
Cable Depth Logs |
512 |
|
EMS-iD Templates |
75 |
Physical Specifications
| Parameter | Details |
|---|---|
|
Screen |
4.4” backlit LCD |
|
Interface |
Soft keys with menu-driven GUI |
|
Audio |
0.25W speaker, headphone jack0.25W speaker, headphone jack |
Connectivity
| Feature | Details |
|---|---|
|
Bluetooth® |
Dual-mode 5.0 (GAP, GATT, SPP) |
|
USB Port |
USB Type-C® for data and updates |
|
GPS |
Internal with autonomous GPS logging |
Environmental Specifications
| Parameter | Value |
|---|---|
|
Operating Temp |
-20°C to 50°C (-4°F to 122°F) |
|
Storage Temp |
-20°C to 70°C (-4°F to 158°F) |
|
IP Rating |
IP54 |
|
Max Operating Alt. |
6500 ft (2000 m) |
|
Certifications |
FCC (2550X), CE (2550XE) |
Display and User Interface
| Component | Size (L×W×H) | Weight |
|---|---|---|
|
Receiver |
30″ × 10.3″ × 10.5″
|
4.8 lb (2.2 kg) |
|
Transmitter |
7.8″ × 11.3″ × 6.8″
|
5.29 lb (2.4 kg) |
|
Kit Size |
33″ × 23″ × 15″ |
29 lb (12.9 kg) |
Included Accessories
Direct-connect cables (small/large clips)
Ground rod and extension cable
3" or 4.5" Dyna-Coupler
Soft carrying case
USB-C charging and battery adapters
Alkaline and rechargeable battery options
